The gantry CNC fiber laser cutting machine has a large format and high-speed gantry, suitable for cutting large me dium and thick plates (6-35mm) of 4.9m * 21m. The gantry frame of the gantry laser cutting machine adopts a special design, and the high-power frame does not deform. The machine is designed and manufactured according to industrial machine tool standards. The machine tool foundation is stable and solid, and the structural rigidity meets industrial grade machine tool standards, with high accuracy. Widely used in steel plate cutting and processing in shipbuilding, highways, high-speed rail engineering, tunnels, bridges and other engineering projects.

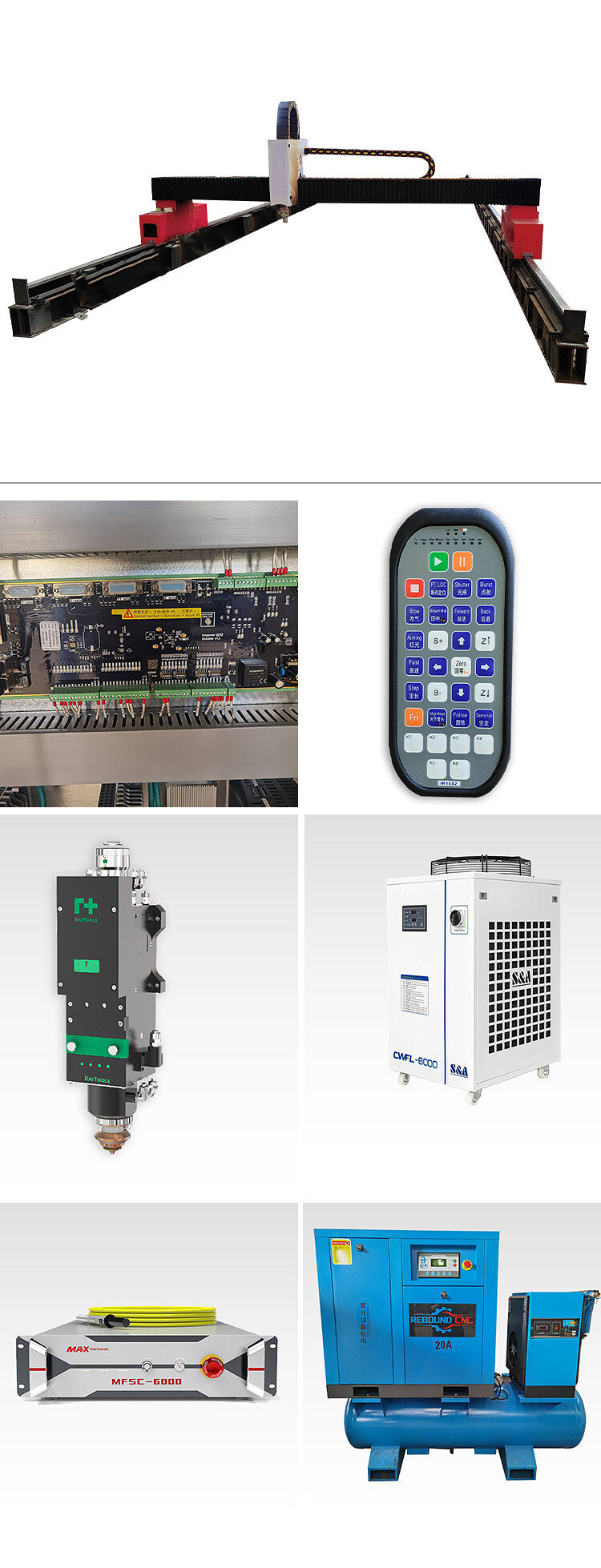

Details of Gantry CNC fiber laser  cutting machine:

1.The X series is a flat laser cutting system developed based on the X-Studio platform. Includes models such as XC3000S/XC3000PRO/XC6000S, and supports EtherCAT bus servo and pulse servo. Featuring unique features such as insensitivity perforation, perforation slag removal, co cutting, vibration suppression, sharp corner cutting, and seamless micro connection.
2.The laser cutting machine remote control is a device used to control the laser cutting machine, which has multiple functions, including on/off, mode switching, parameter setting, controlling XY translation and Z-axis lifting, etc.
3.BM06K is a medium-to-high power laser cutting head with a power level of 6kW. The product is equipped with multiple fiber optic interfaces such as QBH, QD, and G5, and can be adapted to various mainstream lasers. It has a lower protective lens temperature monitoring function, and can display temperature data in real time through a mobile phone APP or a computer desktop window.
4.This water cooler is designed specifically for cooling fiber lasers, with dual temperature and dual control modes, separating low and high temperatures. It can simultaneously cool both the laser and the laser head,
making it versatile. Equipped with two modes: constant temperature and intelligent temperature control; In the intelligent temperature control mode, the water temperature changes with the room temperature (2 degrees lower than room temperature), effectively avoiding the generation of condensate water; The top fan effectively improves the cooling of the chiller itself.
5.MFSC-5000W-6000W single module continuous fiber laser is a high-power fiber laser with high electro-optical conversion efficiency, compact volume, good beam quality, and maintenance free. It combines high-speed cutting of thin plates with bright surface cutting of medium and thick plates, greatly improving the quality of perforation, cutting, welding and other processes. It is mainly used in metal drilling, cutting, welding and other fields such as new energy, 3C, and precision machining.
6.The screw air compressor has an efficient compressor design, which can compress gas to the required pressure in a short time while maintaining high energy efficiency and saving power consumption.

Parameters：

Model	RB3080
Working Voltage	AC 380V, 50/60HZ
Working Size	3000mm*8000mm
Moving Speed	0-30m/min
Laser Power	12000W
Laser Wavelength	1064nm
Working Environment	Temp:0-40℃,humidity:≤80%, No condensation
Position Accuracy	±0.02mm/m
Maximum Accelerated Speed	1.3 G
Total Power	30KW-100KW
Weight	2000KGS
Packaging size:	4000*2000*2000mm
