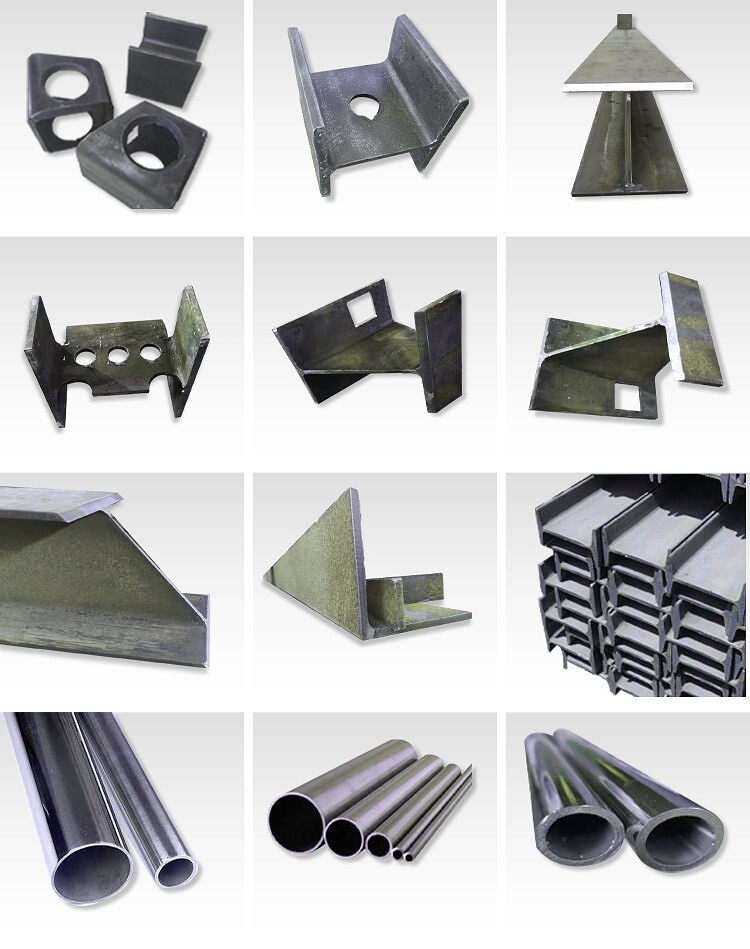

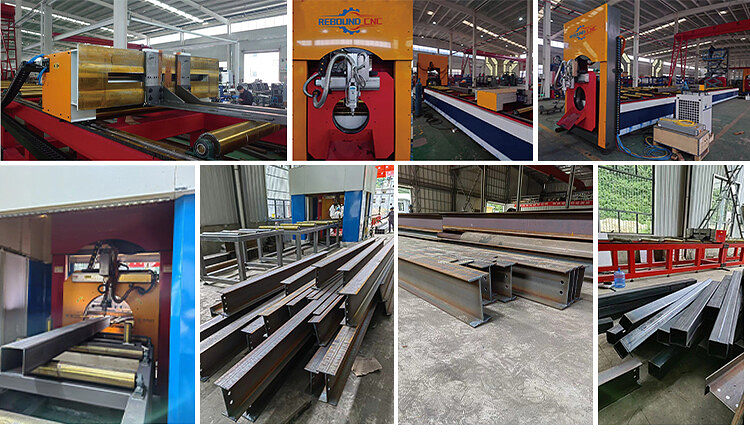

Steel profiles I H beam CNC plasma cutting machineproduction line can cut various metal materials like carbon steel, stainless steel,iron, brass and other metal materials, H beam, L type steel, C type steel, U type steel, H-beam, I-beam, angle, channel. It iswidely used in warehouse buildings, marine engineering, curtain wall building, ship building, offshore construction industries,etc steel structure building industries.

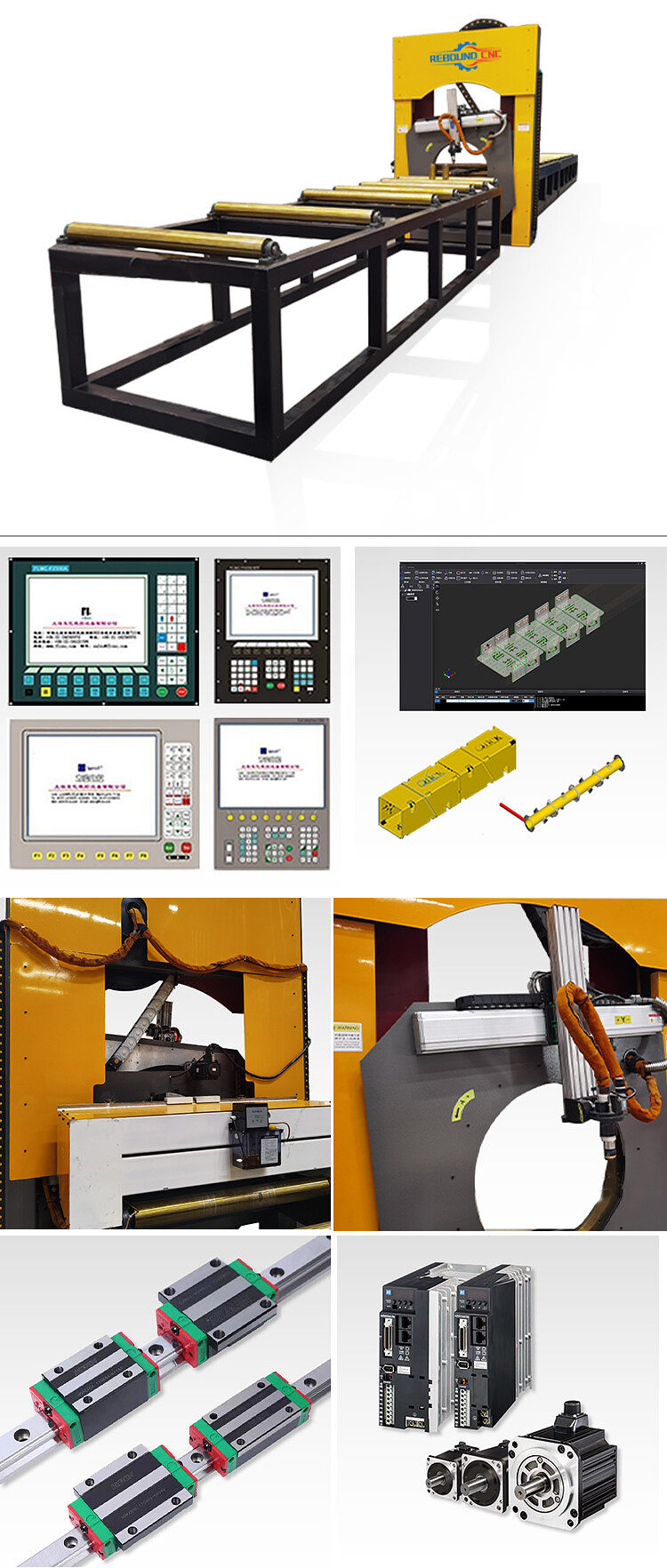

Details of CNC PLASMA cutting machine：

1.Cuttable tube types: round tubes/square tubes/channel steel/angle steel, supporting four-axis linkage cutting.Memory: 64M SDRAM, user program space: 256M, main frequency: 400MHZ system main frequency USB: Front USB1.1 interface, supports at least 16GB USB flash drive Chassis: The all-steel structure is completely shielded, truly capable of preventing electromagnetic radiation, anti-interference, and anti-static.

2.This software of Steel profiles I H beam CNC plasma cutting machine is a universal pipe intersection line calculation, nesting and cutting software. This software has the advantages of powerful functions and easy use. Users only need to import the produced parts, and the software can automatically calculate the cutting line based on the parts imported by the user.

3.Automatic pneumatic centering chuck, automatic nesting, automatic recycling of H-shaped steel, optional TEKLA data interface.

4.Extra large processing area. The diameter of the chuck can reach 800mm, and the cutting circular cross-section can reach 780mm, the square cross-section can reach 550mm, and the rectangular cross-section can reach 750*350mm.

5.Equipped with stepper/ servo motor, high precision realizes closed-loop zcontrol of position, speed and torque, with good high-speed performance.

6.The machine adopts Taiwan HIWIN guide rails and sliders, which have high positioning accuracy, low noise and high wear resistance.

Parameters:
