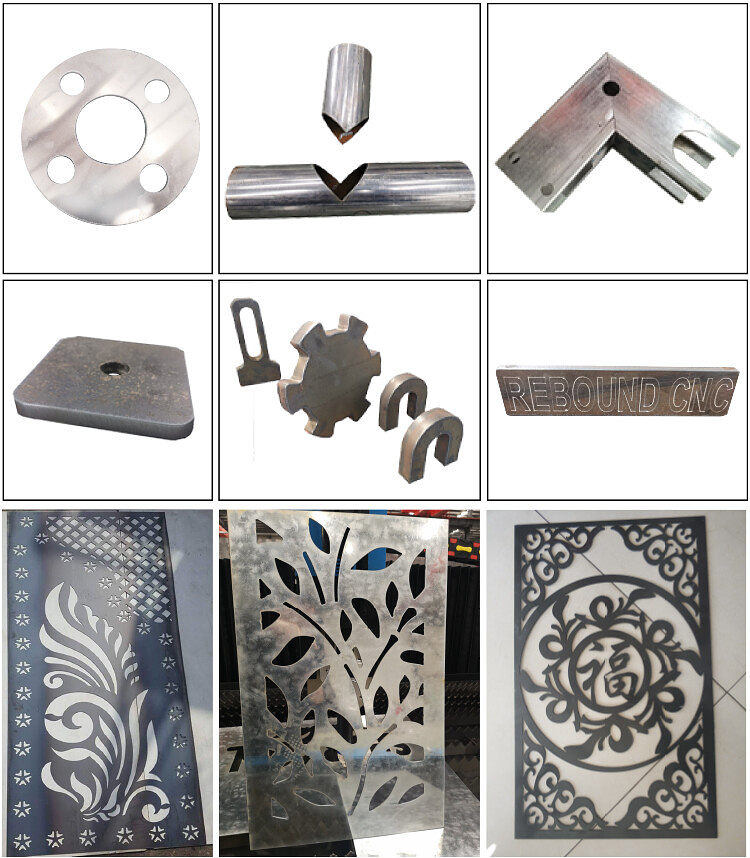

CNC plasma cutting machines can cut various metals that are difficult to cut with oxygen cutting machine by using different working gases, especially for non-ferrous metals (aluminum, copper, titanium, nickel). This RB1530 CNC plasma cutting machine can cut metal plates, round tubes, square tubes and is a versatile plasma cutting machine. It is very suitable for customers who have various metal processing work.

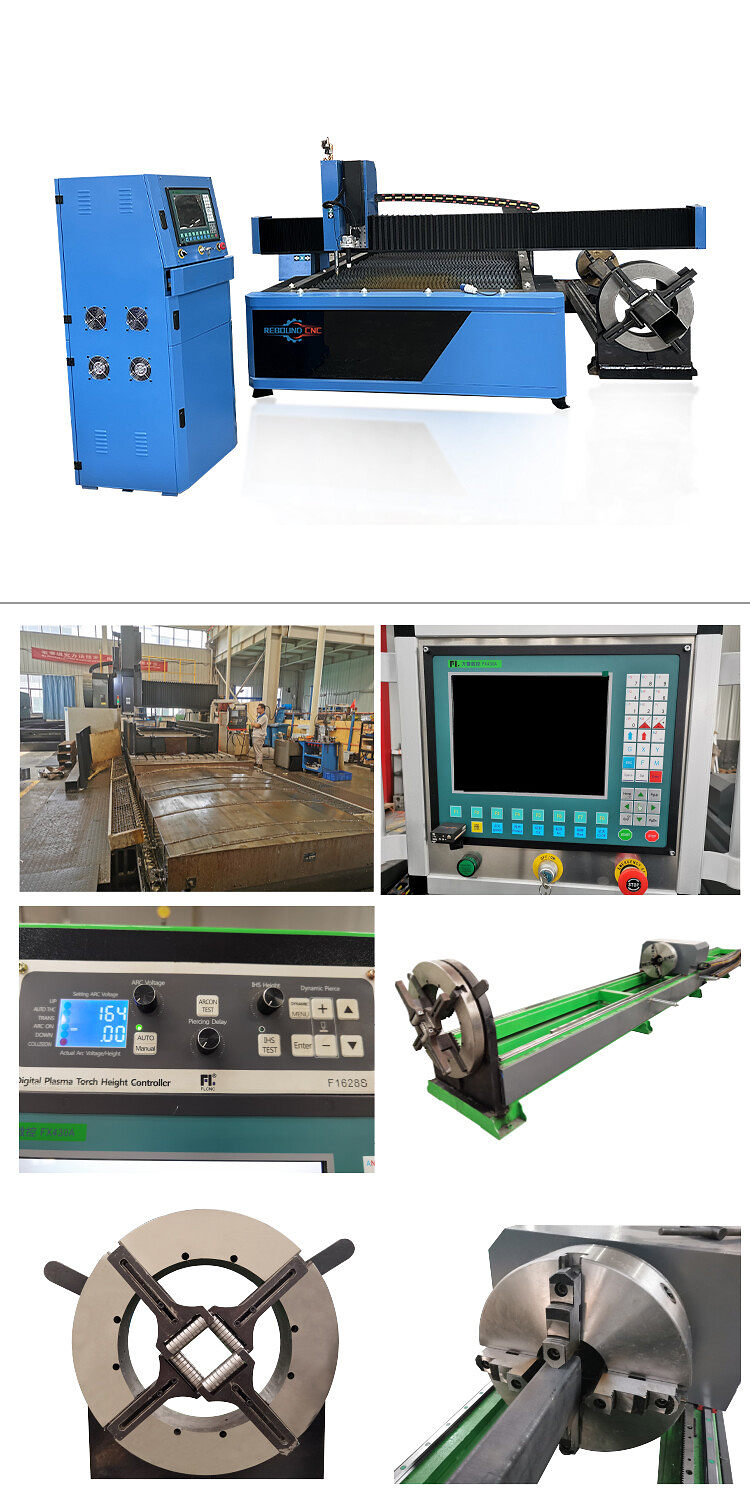

Details of RB1530 CNC PLAMSA CUTTING  MACHINE FOR PLATE AND  ROUND/SQUARED TUBE：

1.The machine steel structure is processed by precision machine tool, solid and reliable, durable.

2.Professional 4 axis CNC plasma equipment control system, FANGLING system, automatic correction of file cutting and output, real-time tracking and detection of the current in the plasma power cutting process.

3.The plasma cutting torch automatic height adjuster system adopts closed-loop PWM control, which is suitable for automatic control of the cutting torch height in the plasma cutting process, ensuring that the height of the cutting torch to the steel plate does not change, and improving the cutting quality.

4.The design of the rotating axis enables the laser cutting machine to adapt to a wider range of processing needs, whether it is a flat or three-dimensional structure, it can easily cope with it, greatly improving the applicability and flexibility of the equipment.

5.This machine adopts manual four claw two linkage self-centering chuck, which is composed of the gear shaft installed on the chuck body and the grooved wheel disc driving the roller assembly to move synchronously in the opposite direction. By manually rotating the gear shaft, the corresponding roller assembly can realize the synchronous linear movement of centering, so as to realize the clamping and positioning of various workpieces (pipes) symmetrical with the central axis. The structure is simple and reasonable, The operation process is simple, convenient and stable.

6.The thread is meshed with the plane thread on the back of the Belleville bevel gear. When the small bevel gear is rotated through the square hole with a wrench, the Belleville gear rotates, and the plane thread on the back drives the four claws to approach or withdraw to the center at the same time, to clamp the tubes with different diameters.

PARAMETERS：
